WIZARD ARC & Tips
ARC: $75.00 • Tip: $27.00
Order / Request a Quote →

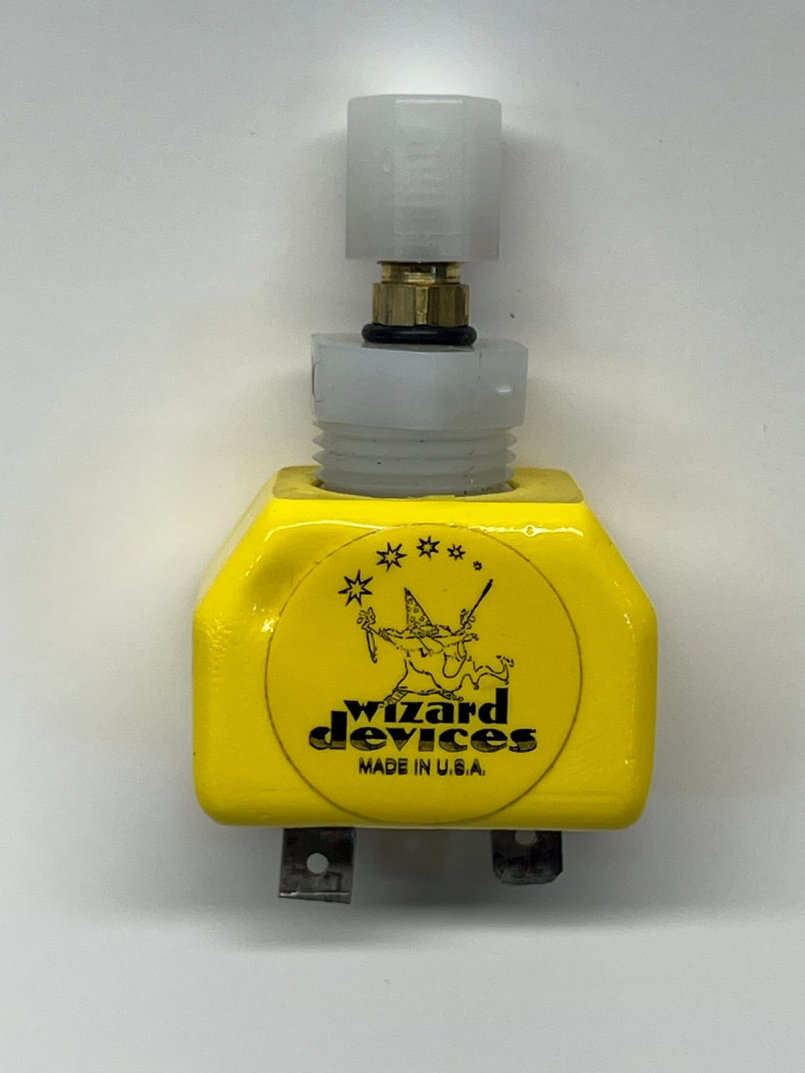

The WIZARD "ARC" STI is an electrical plasma discharge device, which attaches to the "WIZARD 50G2" Mini Blasting Machine. The high tech electric plasma discharge generates a shock wave, which is designed to initiate shock tube (NONEL). The "ARC" STI lugs are placed into the spring-loaded contacts on the "WIZARD 50G2". Once attached, the user starts the normal charging and firing sequence. The addition of the "ARC" STI attachment linked with the "WIZARD 50G2" makes a perfect combination for all well-rounded explosives professional. The WIZARD "ARC" STI is safe, dependable, and simple to use.
Features:
- The "ARC" STI is miniature in size, 1L" x 2L" x 1".
- Solid state, high impact plastic construction will provide many years of dependable service.
- The "ARC" STI plasma tip can be easily replaced, simply pulling out the used tip, and replacing it with a new tip. all in less than a minute.
- Weather Resistant
- One-year warranty
Operation:
- Insert the end of the shock tube through the Ferrell nut until it touches the tip, pull the shock tube out approximately 1/8" to L", creating a gap for the tip to fire and generate the plasma shock wave.
- Tighten the Ferrell nut to hold the shock tube in position.
- Place the "ARC" STI lugs into the spring-loaded contacts on the "WIZARD 50G2".
- Start the charging and firing sequence as normal for the "WIZARD 50G2".
NOTE: NEVER attach a ready to fire "ARC" to a fully charged blasting machine.
ALL STANDARD SAFETY PRECATIONS APPLY.
